Drywall Screw — Black
The standard indoor drywall screw
The black drywall screw is the one used on most interior jobs. The black colour is a phosphate coating, which stops the screws rusting in storage and gives the driver bit a little extra grip.
Stocked in Bengaluru · Special sizes made to order · Bulk rates available
Available sizes
Dia × Length (mm)
- 6 x 13
- 6 x 16
- 6 x 19
- 6 x 25
- 6 x 32
- 6 x 38
- 6 x 50
- 6 x 60
- 6 x 75
- 8 x 19
- 8 x 25
- 8 x 32
- 8 x 38
- 8 x 50
6 gauge and 8 gauge. Available in coarse thread for timber studs and fine thread for steel studs — tell us which when ordering.
Available sizes for Drywall Screw — Black: 6 x 13, 6 x 16, 6 x 19, 6 x 25, 6 x 32, 6 x 38, 6 x 50, 6 x 60, 6 x 75, 8 x 19, 8 x 25, 8 x 32, 8 x 38, 8 x 50.
What it is used for
Use the black screw for normal indoor drywall work where there is no damp.
Indoor walls and ceilings
The standard choice for gypsum board partitions and false ceilings.
Invisible finish
The head dimples the board so it can be filled and painted over.
Lowest cost
The most economical of the three finishes for high-volume interior work.
Dry areas only
Not for bathrooms, kitchens, outdoors or anywhere that gets damp.
Overview
It is made for dry indoor work only. The coating offers very little rust protection, so it is not suitable for bathrooms, outdoor work or anywhere damp.
The bugle head presses a small dimple into the board face without tearing the paper, which is what lets you fill and paint over it invisibly.
Bugle head
Presses the board face into a dimple instead of cutting through it.
Sharp point
Bites immediately, which keeps high-volume fixing quick.
Two thread types
Fine for steel studs, coarse for timber.
Trade packs
Available in 250, 500 and 1000 piece boxes for site work.
Specifications
Standard stock configuration. Non-standard sizes, drives and coatings are made to order — ask us.
| Head | Bugle head, Phillips PH2 drive |
|---|---|
| Thread | Coarse for timber, fine for steel studs |
| Point | Sharp needle point |
| Material | Hardened carbon steel |
| Diameter range | 6 gauge and 8 gauge |
| Length range | 13 mm to 75 mm |
| Substrate | Gypsum board, fibre cement, calcium silicate board |
| Typical spacing | 200–300 mm along studs, 150–200 mm at board edges |
| Packing | 250 / 500 / 1000 piece boxes |
Technical documentation
Exact specifications vary between manufacturers and production batches. Tell us the job and we will confirm the specification before despatch, and send the manufacturer’s datasheet or test certificate for the batch if you need it for a submittal.
Section 1 — Installation
How to fit it
Board fixing is all about depth. Every screw needs to sit just below the surface with the paper face still intact, and doing that a few hundred times in a row is what a depth stop is for.
Drawing made for Modern Fastening Solution. Shown for guidance — check against your own job before ordering.
- 1
Match the thread to the stud
Fine thread for steel studs, coarse for timber. A coarse thread in thin steel will just spin and never tighten.
- 2
Pick the right length
For 12.5 mm board, 25 mm on steel studs and 32 mm on timber. Add the second board thickness if you are double layering.
- 3
Use a depth stop
Set it so the head finishes just below the surface with the paper dimpled but not broken. This turns hundreds of judgement calls into one setting.
- 4
Press the board tight to the stud
Push the board firmly against the framing as you drive. Screwing across a gap is what causes screws to pop through the finish months later.
- 5
Follow the spacing
Roughly 200–300 mm along studs and 150–200 mm at board edges, staying 10–15 mm in from the edge.
Section 2 — Applications
Where it is used
Interior walls and ceilings, in every kind of building.
Drywall partitions
Gypsum board fixed to steel stud or timber partition framing.

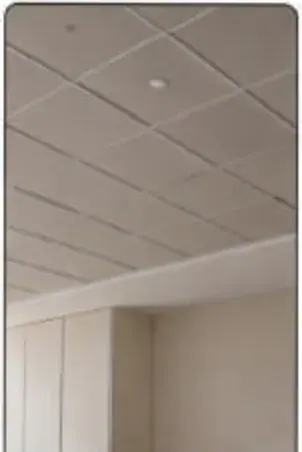

False ceilings
Board and tile ceiling systems fixed up to the ceiling grid.

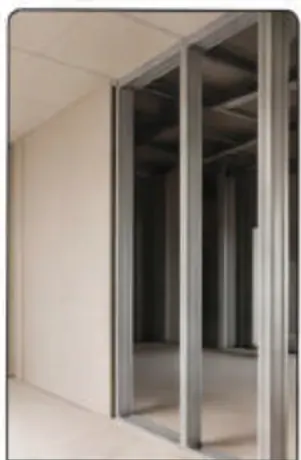

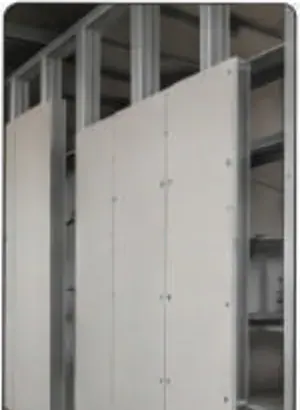

Metal stud framing
Board on light-gauge steel stud framing in commercial fit-out.

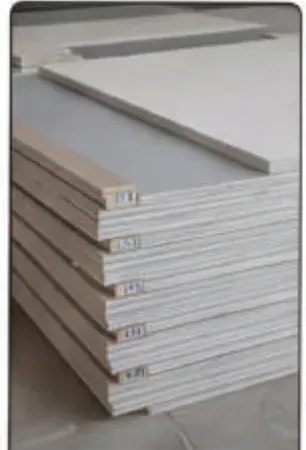

Gypsum board installation
Boarding out walls and bulkheads on site.

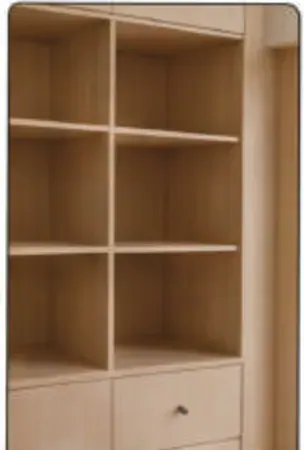

Wood to drywall applications
Fixing timber battens, trims and carcassing against boarded walls.
Drywall Black — questions we get asked
Why are drywall screws black?
It is a phosphate coating. It stops the screws rusting in the box and gives the bit slightly better grip. It is not real rust protection, so these are for dry indoor use only.
Fine thread or coarse thread?
Fine thread for light steel studs, coarse thread for timber studs. Using coarse in thin steel is why screws sometimes spin without ever tightening.
What length for 12.5 mm board?
25 mm on steel studs, 32 mm on timber studs. Double the board and add the extra thickness.
Can I use these outdoors?
No. They will rust within one monsoon. Use the zinc drywall screw outdoors, or better still a proper exterior screw.
Request a price for Drywall Black
Send us the sizes and quantities and we will come back with a price, usually the same working day. Not sure of the size? Describe the job and we will work it out.
Often ordered with this
Drywall & Wood Screws

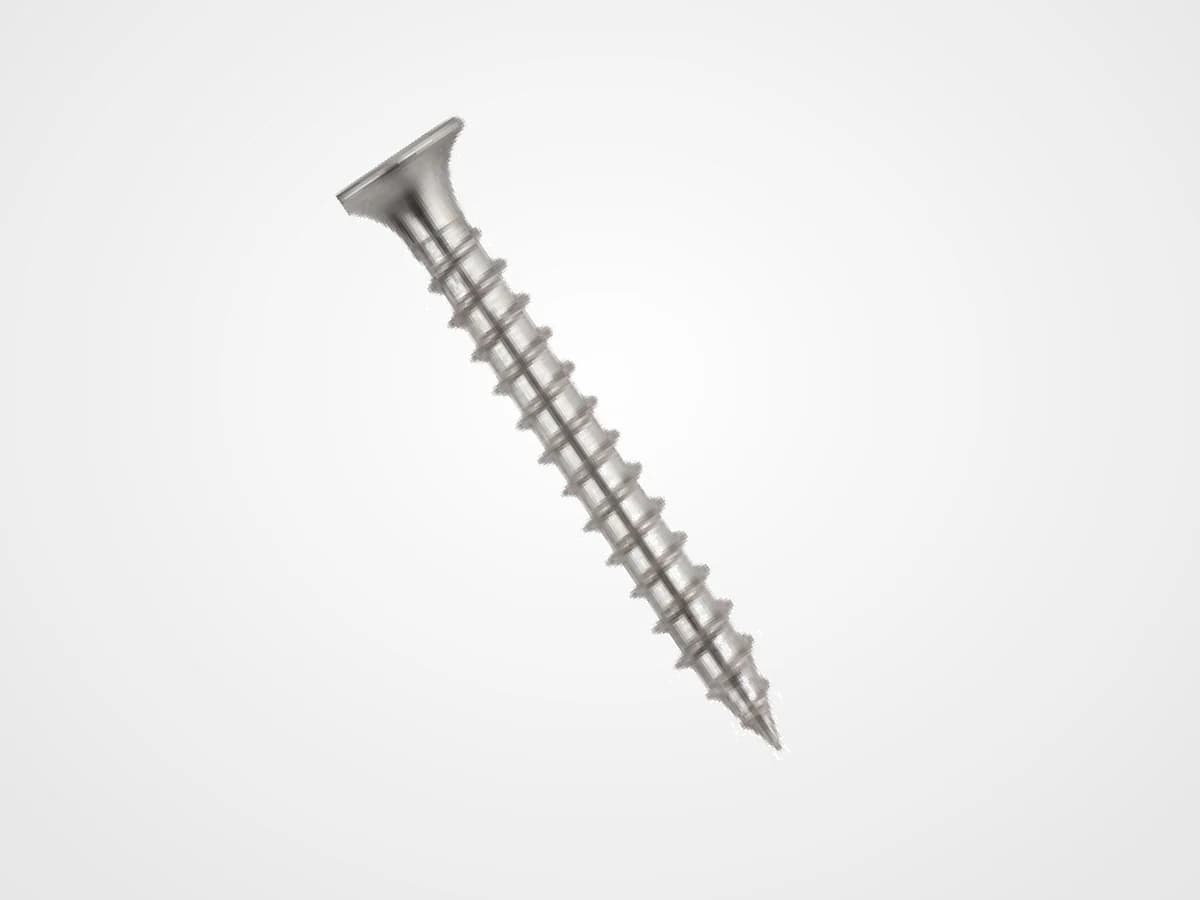

Drywall Screw — Nickel
